Project Overview
This custom-developed Remote High-Power Laser Output Module is designed for long-distance, high-energy laser applications in hazardous and extreme environments.
With a maximum laser power of 12kW and an adjustable working distance of 1.5–5 meters, the system enables controlled remote thermal processing, burning, heating, and material removal without close human exposure.
This project demonstrates Nipex’s capability in high-power optical system design and remote beam delivery engineering.
Core Capabilities
Ultra-High Power Output
Maximum laser power: 12,000W
Standard configuration: 6000W
Wavelength: 1080nm ±20nm
Output aperture: 35mm
Designed for continuous industrial-grade operation under high thermal load.
Adjustable Energy Density (2–45mm Spot Range)
Working distance: 1.5 – 5 meters
Spot size adjustable: 2.0 mm – 45 mm
2.0 mm → High energy density for concentrated burning
45 mm → Wide-area heating for controlled thermal stress
This variable spot architecture enables dual-mode operation:
Precision energy focus
Surface thermal distribution
Lightweight Modular Structure
Net weight: approx. 6.5 kg
Compact integrated housing

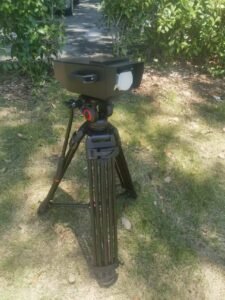

Mountable on tripod, robotic arm, mobile platform, or unmanned systems
Protective Gas Interface
Reserved internal pressurization channel
Compatible with clean nitrogen or other protective gases
Suitable for dusty, mining, or harsh industrial environments
Industrial Cooling System
Water cooling
Operating pressure: 3–8 bar
Designed for high-power continuous operation
Typical Application Scenarios
Mining & Hazardous Area Clearing
Remote obstacle removal, metal burning, and thermal fragmentation without personnel exposure.
Remote Metal Plate Processing
High-energy burning and localized cutting from a safe distance.
Concrete Heating & Thermal Stress Cracking
Large-spot heating enables controlled structural cracking.
Emergency & Special Operations
Deployable on mobile platforms for remote industrial interventions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Max Laser Power | 12kW |
| Standard Configuration | 6kW |
| Wavelength | 1080nm ±20nm |
| Output Aperture | 35mm |
| Working Distance | 1.5–5 m |
| Spot Adjustment | 2.0–45 mm |
| Cooling | Water cooling |
| Cooling Pressure | 3–8 bar |
| Net Weight | ~6.5 kg |
Engineering Highlights
High-power optical integration (up to 12kW)
Long-distance beam energy control
Variable energy density architecture
Compact high-strength housing
Industrial-grade cooling system
This project reflects Nipex’s advanced capabilities in
high-power laser optical modules and customized system integration.
