Laser Surface Hardening Solutions
Laser surface hardening is an advanced heat treatment process that uses a high-energy laser beam to rapidly heat the surface of metal components, followed by self-quenching through the base material. This process forms a hardened martensitic layer with minimal distortion, significantly improving wear resistance, fatigue strength, and service life. Compared to conventional methods such as induction or flame hardening, laser hardening offers superior precision, localized heat input, and higher process efficiency, making it ideal for complex geometries and high-performance industrial applications.
With flexible beam shaping and adjustable spot sizes, modern laser systems enable precise control of heat input for different applications.
Process Overview
Laser surface hardening is a controlled thermal treatment process in which a focused laser beam rapidly heats the material surface above the austenitizing temperature, followed by self-quenching through the base material.
This process creates a hardened martensitic layer without melting the substrate, maintaining dimensional accuracy while significantly improving wear resistance and fatigue strength.
Nipex Laser surface hardening systems deliver stable energy distribution and precise thermal control for industrial heat treatment applications.

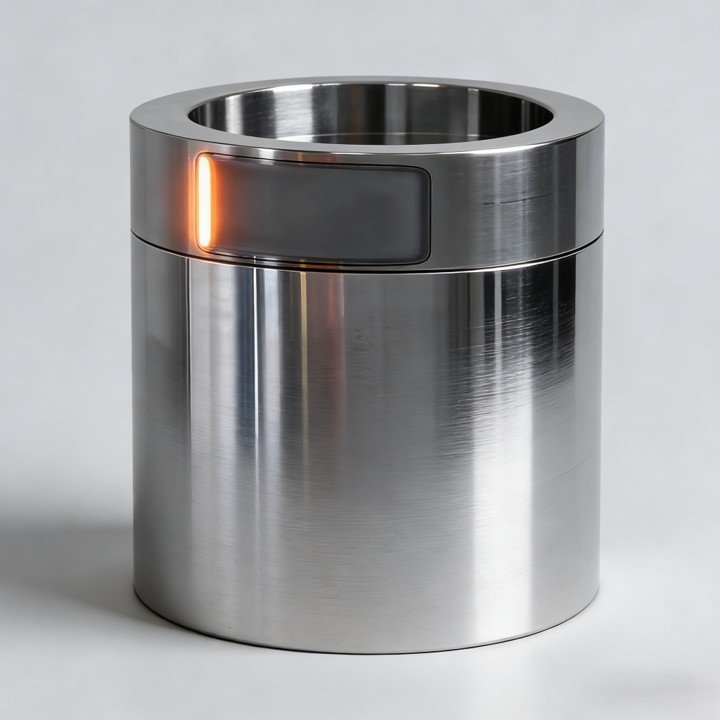

Fixed Integral Quenching Head
Typical quenching applications
Typical applications include gears, shafts, molds, and wear-critical components where localized hardening is required without affecting the core properties.

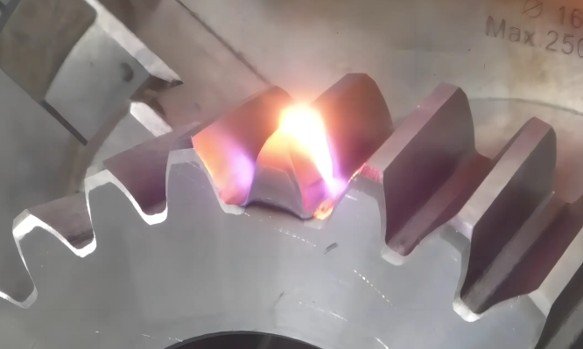

Laser Surface Hardening of Gear Component
Key Advantages of Laser Surface Hardening
Minimal thermal distortion
No material addition required
Controlled hardened depth
Reduced post-processing
Localized heat treatment capability
High repeatability in automated production
Compared to conventional flame or induction hardening, laser hardening provides greater precision and flexibility for complex geometries.

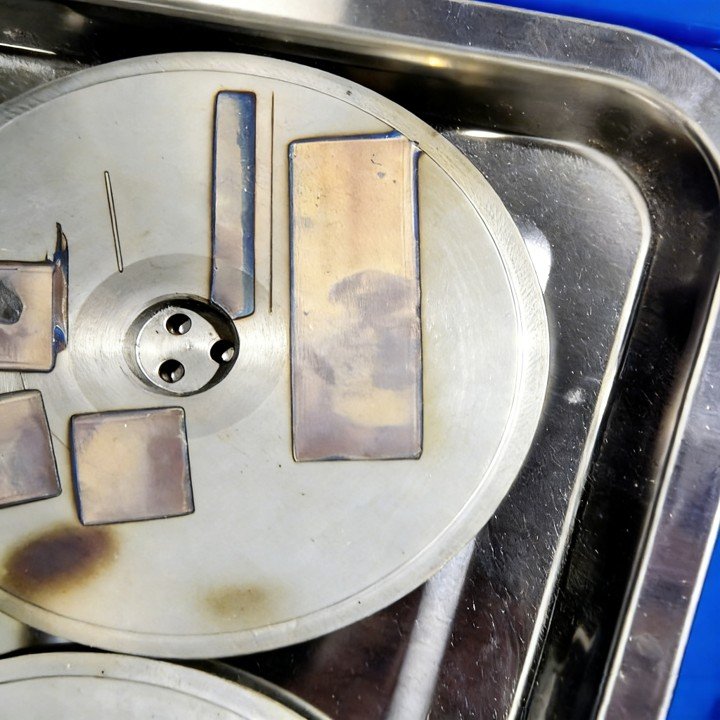

Broadband quenching test, edge blurring effect, energy uniformity
Core Technologies
Nipex Laser hardening heads are engineered with a modular optical architecture designed for consistent beam shaping and energy distribution:
Fixed or adjustable spot size configurations
Integrating copper mirror systems for uniform energy distribution
High-power fiber interfaces (QBH / QD / Q+)
Fully water-cooled housing for thermal stability
Precision focusing optics
Stable beam transmission for continuous industrial operation
The integrating mirror design enables uniform surface heating, reducing hot spots and ensuring consistent hardening depth.

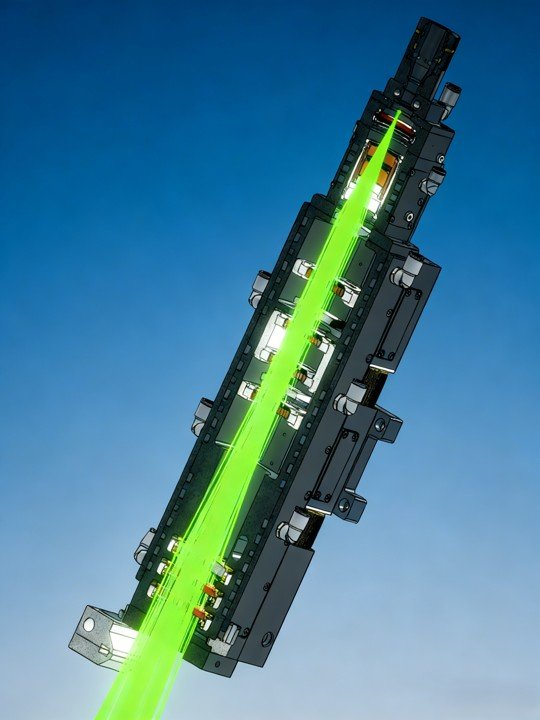

Internal cross-sectional view of variable light spot
Process Control & Performance
Hardened depth control through power and scanning speed adjustment
Stable temperature distribution across the treatment zone
Reduced oxidation with protective gas systems
Suitable for robotic and CNC-controlled applications
Laser surface hardening ensures predictable metallurgical transformation and consistent surface performance.
Application of rectangular spot quenching in mold steel products
Typical Applications
Laser surface hardening is widely used in:
Gears and transmission components
Shafts and bearing seats
Hydraulic cylinders
Automotive structural components
Mold and die surfaces
Ductile iron and alloy steel components
The process enhances wear resistance, fatigue life, and surface durability without altering the core mechanical properties.

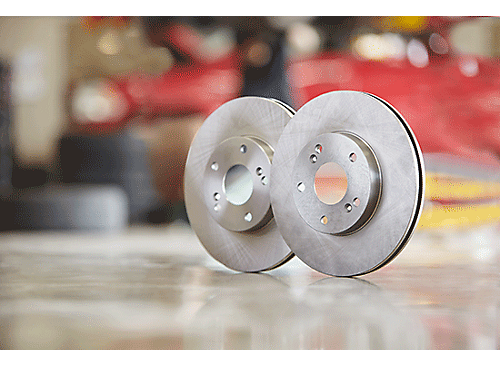

Application of hardening in automotive brake discs
Explore Surface Hardening Solutions
Fixed Spot Laser Hardening Heads
Variable Spot Laser Hardening Systems
Integrating Mirror Hardening Heads
Fiber Interfaces
Optical Components & Protective Windows

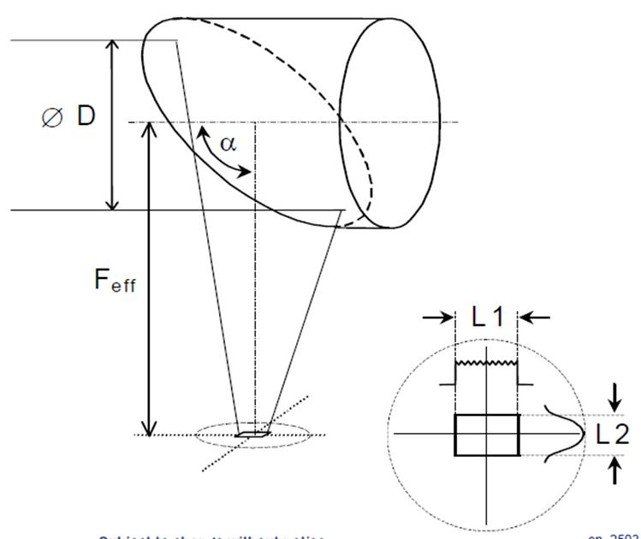

Schematic diagram of the integrating mirror of a bronze mirror
Adjustable Rectangular Laser Beam 12×2–60×2 mm | 6kW Laser Hardening Head
Designed for Industrial Integration
Laser surface hardening with advanced beam shaping technology enables precise control of heat input, ensuring consistent and high-quality results across a wide range of applications. By adjusting the laser spot size and energy distribution, manufacturers can optimize the process for different materials, geometries, and performance requirements.
At Nipex, we provide customizable laser hardening solutions, including variable spot laser heads designed for flexible and efficient processing. Whether you need uniform hardening for large surfaces or precise treatment for localized areas, our solutions help improve productivity and reduce operational costs.
Contact us today to discuss your application or request a customized solution.
OEM services and system integration support are available for global partners.
Get a Customized Laser Hardening Solution
Tell us your application requirements, and our engineers will recommend the optimal laser head and beam configuration for your process.
