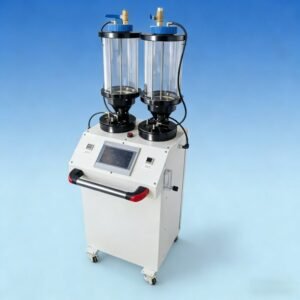

Intelligent Rotary Powder Feeder
The Dual-Hopper Intelligent Rotary Powder Feeder is a precision-engineered powder delivery system designed for laser cladding, laser metal deposition (LMD), and directed energy deposition (DED) applications. Featuring dual 6L powder hoppers and a high-accuracy rotary feeding mechanism, it delivers stable and repeatable powder flow from 0.3–350 g/min with excellent consistency.
An integrated powder drying and heating system prevents moisture-related clogging, ensuring smooth operation in demanding industrial environments. The intelligent touchscreen interface enables real-time monitoring and control, while remote communication support allows seamless integration with CNC and laser systems. Optional non-stop refilling and automatic powder mixing functions make this feeder ideal for multi-material processing and high-efficiency industrial laser manufacturing.
Fully intelligent dual-hopper powder feeder with touchscreen control interface
Smooth and stable powder flow, clog-free operation, integrated powder drying and heating system
Optional cladding system control module to reduce CNC system integration costs
Optional non-stop powder refilling function during operation
Remote automatic control of powder feeding start/stop and feed rate adjustment
Automatic powder mixing capability for multi-material applications
Number of Powder Hoppers: 2
Powder Feed Rate: 0.3–350 g/min
Powder Feeding Accuracy: ≤ 2%
Repeatability Error: ≤ 1%
Powder Jet Angle: ±90°
Operating Air Pressure: 2–6 bar
Air Flow Rate: 1–25 L/min
Single Hopper Capacity: 6 L
Powder Particle Size: 20–250 μm
Rotary Disc Speed: 0.5–16 r/min
Flow Meter Type: Float-type flow meter
Controller: Microcontroller (MCU-based)
Remote Communication: RS232 / AI / DI supported
Dimensions (L×W×H): 360 × 480 × 1355 mm
Weight: 65 kg
