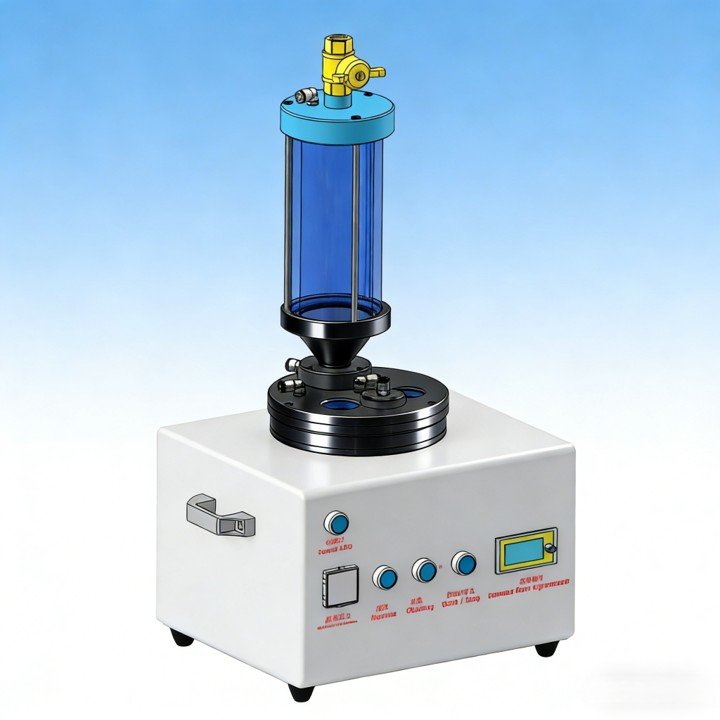

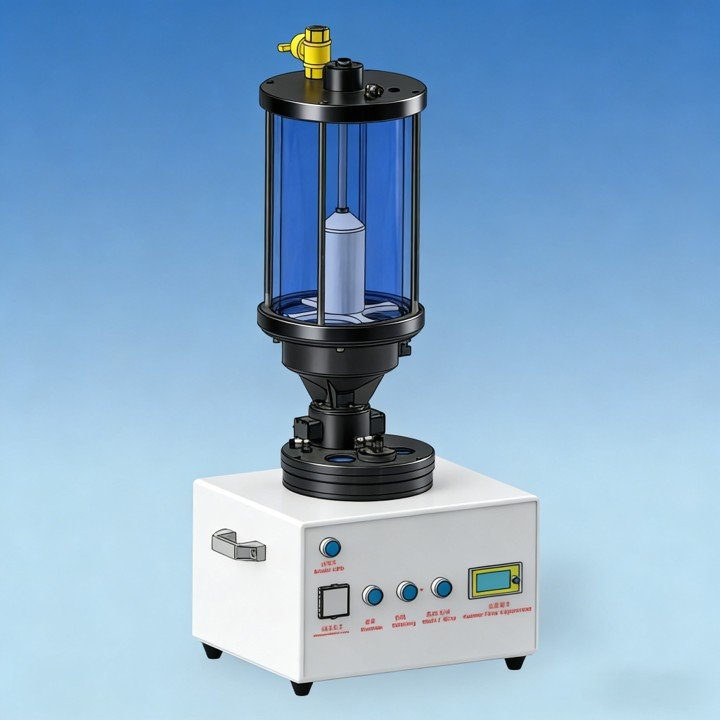

Compact Desktop Powder Feeder System
The JX-DPF-Mini Compact Desktop Powder Feeder is a cost-effective powder delivery solution designed for laser cladding, laboratory research, and small-scale laser processing systems. Its compact desktop structure makes it ideal for integration into limited workspaces and R&D environments.
Equipped with an internal agitation system, the feeder ensures stable and uniform powder flow while minimizing clogging. A built-in low-powder alarm enhances operational reliability, and the quick powder discharge function allows fast material changeover and easy maintenance. Designed for precision and simplicity, the JX-DPF-Mini provides reliable powder feeding performance for entry-level and experimental laser applications.
Compact desktop design for laboratory and small laser systems
Integrated powder agitation system for stable material flow
Low-powder alarm function for enhanced operational safety
Quick powder discharge for fast material replacement
Cost-effective solution for R&D and entry-level applications
Simple control interface for easy operation
- Number of powder hoppers: 1
- Powder feeding rate: 0.3–350 g/min
- Powder feeding error: ≤ 2%
- Repeatability of powder feeding error: ≤ 1%
- Powder beam inclination angle: ±90°
- Air pressure: 2–6 bar
- Air flow rate: 1–25 L/min
- Single hopper volume: 6.5 L
- Powder particle size: 20–250 μm
- Powder disc speed: 0.5–16 r/min
- Flow meter: Rotameter
- Remote communication: AI / DI
- Dimensions: 360 × 300 × 833 mm
- Weight: 15 kg
