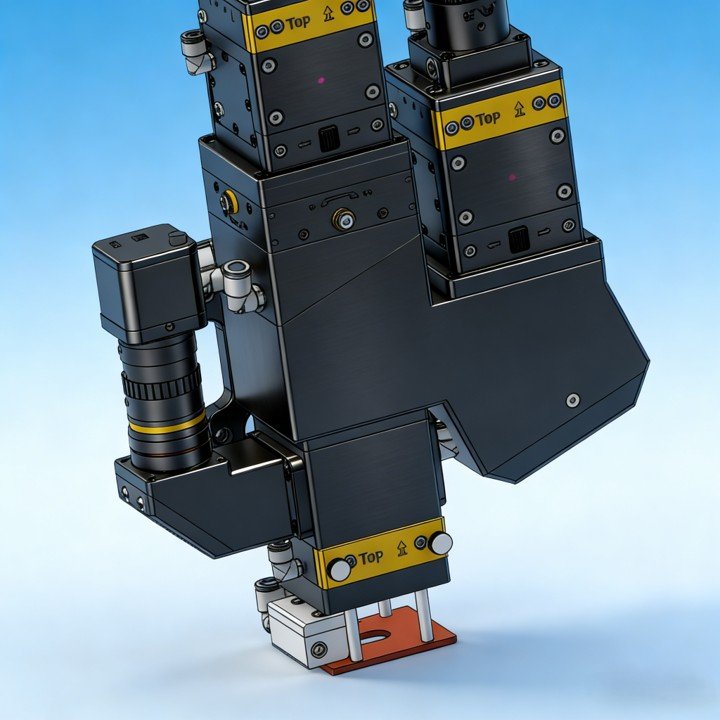

Multi-Laser Hybrid Welding Head

The Multi-Laser Hybrid Welding Head is engineered for advanced beam-combining welding applications, supporting flexible configurations including Fiber + Fiber, Fiber + Diode, and Fiber + Blue Laser integration. By combining multiple laser sources within a single optical system, it enables optimized energy distribution, improved material absorption, and enhanced weld stability across a wide range of industrial applications.

Integrated gas shielding, transverse gas curtain protection, and CCD-based weld pool monitoring further enhance process control, optics protection, and production reliability. The compact, modular design allows seamless integration into robotic and automated laser welding systems.

Request More Information

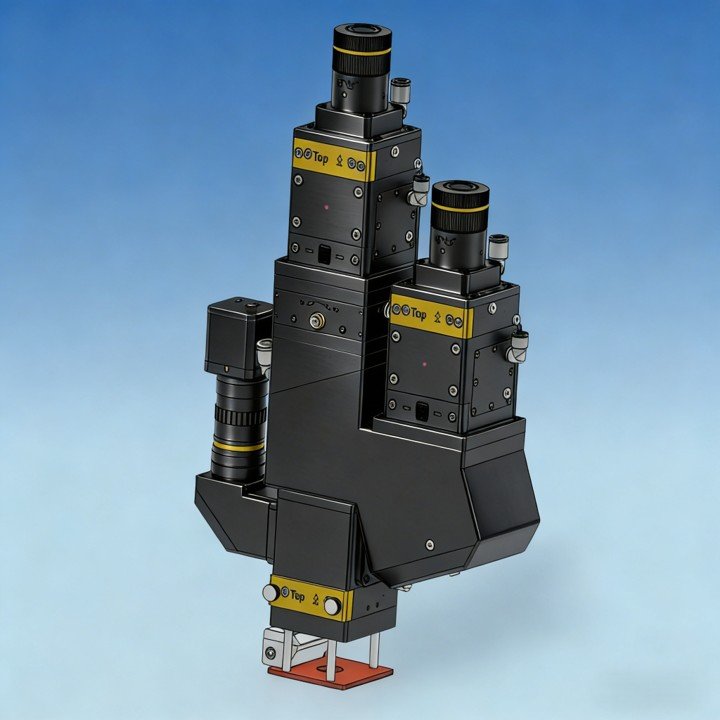

Multi-Laser Hybrid Welding Head for Fiber, Diode and Blue Laser Beam Combining Applications

  • Fully water-cooled body and nozzle assembly ensures superior thermal management and stable operation under high-power multi-laser welding conditions.

  • Supports flexible beam configurations including Fiber + Fiber, Fiber + Diode, and Fiber + Blue Laser combinations, enabling advanced multi-source laser welding and optimized material absorption.

  • Integrated internal nozzle gas shielding protects optical components from contamination and thermal damage, extending lens life and improving process reliability.

  • Independently adjustable dual beam spot sizes, allowing precise control of energy distribution and enhanced welding process optimization.

  • Drawer-style upper and lower protective windows for fast, tool-free replacement and simplified maintenance.

  • Integrated transverse gas curtain system below the optics prevents weld spatter from contaminating critical optical components.

  • Equipped with an optional CCD monitoring system for real-time weld pool observation, enhancing process stability and quality control.

  • Fiber Interface: QBH / LLK-D / Q+

  • Collimation Focal Length: F = 100 mm

  • Focusing Focal Length: F = 200 mm / 250 mm

  • Maximum Laser Power: ≤ 6 kW

  • Upper Protective Window: Ø40 × 3.5 mm

  • Lower Protective Window: Ø40 × 3.5 mm

  • Focal Spot Shape: Circular beam profile

  • Clear Aperture: 28 mm

  • Laser Head Weight: Approx. 8.5 kg
