Flat Optics for Industrial Laser Systems

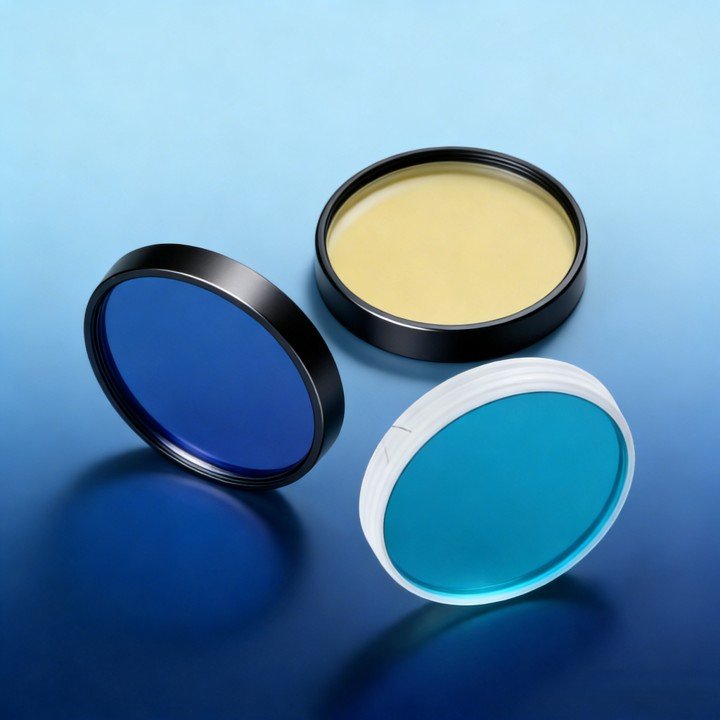

Our flat optics are engineered for high-performance industrial laser applications, including cutting, welding, cladding, and surface treatment. The product range includes protective windows, plano lenses, beam splitters, and high-reflectivity mirrors manufactured from precision quartz and copper materials. Designed for durability and optical stability, these components provide excellent transmission efficiency, minimal thermal distortion, and reliable performance under high-power laser conditions.
As a factory-direct manufacturer, we offer OEM and custom coating options to meet specific wavelength and system requirements. With strict quality control and precision machining, our flat optics ensure long service life and seamless integration into automated laser equipment and advanced manufacturing systems.
High optical transmission and reflectivity for industrial laser applications
Excellent thermal stability under high-power laser conditions
Precision polished surfaces for minimal distortion and consistent beam quality
Available in quartz and copper materials for different wavelength requirements
Durable coatings with strong resistance to contamination and thermal damage
Tight dimensional tolerances for easy integration into laser cutting, welding, and cladding systems
OEM and custom coating options available
Factory-direct manufacturing with strict quality control
| Diameter | 5 – 200mm |
| Dimensional Tolerance | +0/-0.010mm |
| Thickness | ±0.010mm |
| Clear Aperture | >90% |
| Surface Flatness (P – V) | λ/10 to λ/20 |
| Bevel (face width @ 45 degrees) | <0.25mm |
| Surface Quality | 10-5 |
| Parallelism | <10 arcsec |
| Materials | UV Grade Fused Silica (Corning HPFS® 7980), KrF Grade Fused Silica (Corning HPFS® 7980), IR Grade Fused Silica (Corning HPFS® 7979), Sapphire, N-BK7, N-SF5, N-SF11, CaF2, and More |
| Surface Roughness | 10 – 15Å typical, <1Å for superpolished surfaces |
