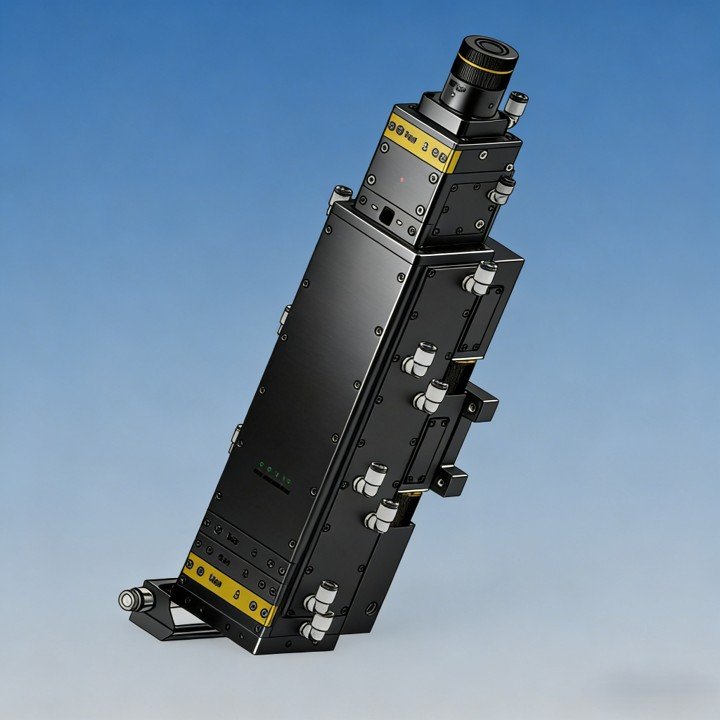

Variable Spot Laser Hardening Head
The VarioSpot™ Variable Beam Laser Hardening Head is engineered for precision laser surface hardening applications requiring adjustable beam size and flexible heat treatment control. Designed with a rectangular, variable spot profile, this laser hardening head enables precise energy distribution for optimized quenching depth and uniform surface treatment.
Its long focal length configuration supports large working distances and internal diameter processing, making it ideal for shafts, molds, heavy-duty components, and large structural parts. The fully water-cooled body and nozzle structure ensure reliable thermal management under high-power laser operation.
Fully water-cooled body and powder nozzle design for superior thermal stability during high-power laser hardening
Compact and lightweight construction, suitable for robotic and machine-mounted integration
Internal gas shielding design protects optical components from contamination and thermal damage
Adjustable rectangular beam profile, enabling flexible spot size control for precise quenching and heating applications
Drawer-style dual lower protective window design for fast maintenance and easy replacement
Enhanced upper protective window sealing for improved dust and debris protection
Fiber Interface: QBH / QD(LLK-D)/Q+（HLC-16）
Collimation Focal Length: F = 100 mm
Focusing Focal Length: F = 450 mm
Maximum Laser Power: ≤ 12 kW
Upper Protective Window: Ø40 × 3.5 mm
Lower Collimating Lens: Ø55 × 5.0 mm
Lower Protective Window: Ø55 × 5.0 mm

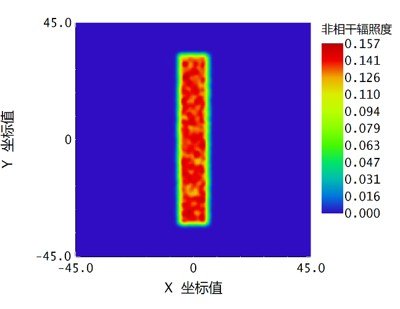

Focal Spot Size: 5 × 5 mm (adjustable rectangular beam)
Clear Aperture: 40 mm
Laser Head Weight: Approx. 8.5 kg
Minimum Internal Processing Diameter: ≥ 50 mm
Working Distance (from lower surface to focal plane): 403 mm
