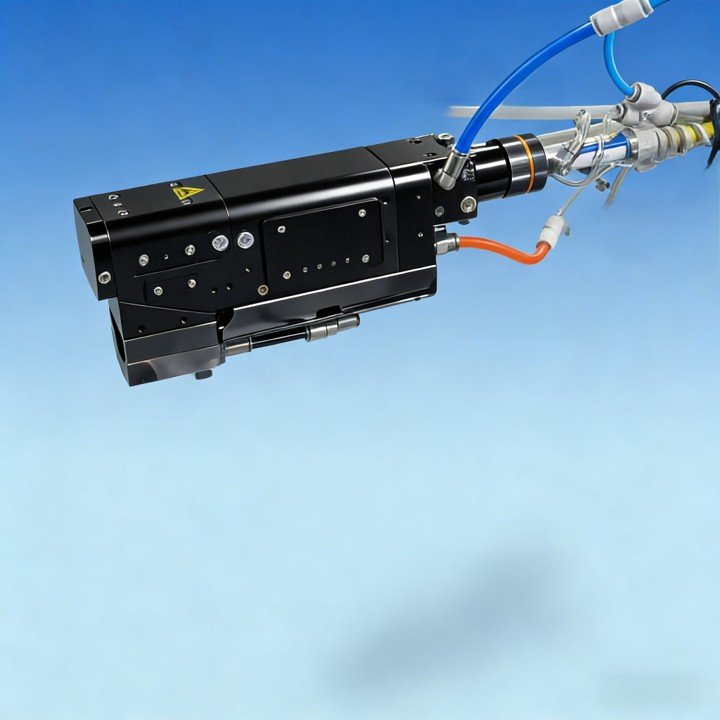

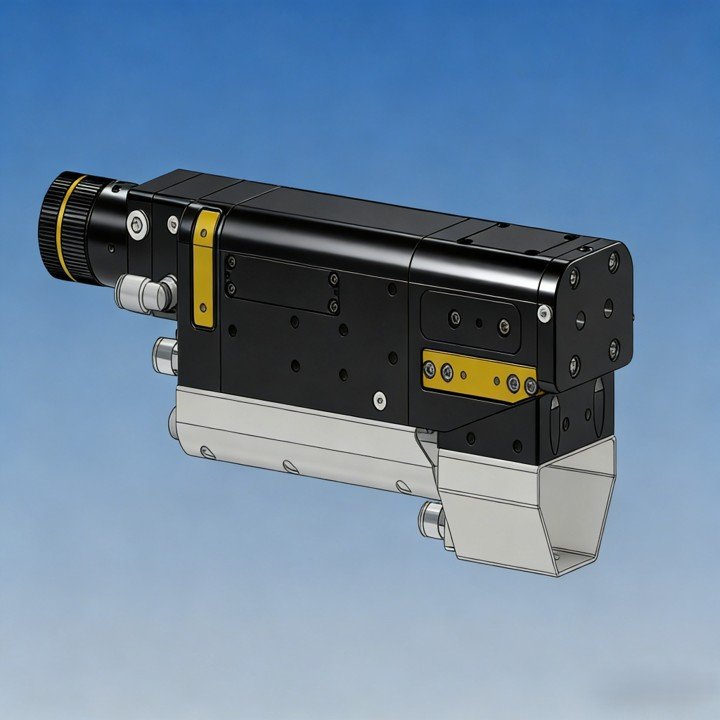

Copper Reflective Beam Integrator Hardening Head

This fixed laser hardening head is engineered for precision surface hardening of metal components. Featuring a robust design and high-quality optical elements, it delivers uniform laser energy distribution for consistent hardness and minimal distortion. Ideal for industrial applications such as gears, shafts, and tool surfaces, it ensures reliable performance, improved wear resistance, and long service life. Compatible with various high-power laser systems, this fixed hardening head enhances processing efficiency and stability in automated production lines.

Request More Information
Fixed-spot beam integrator laser hardening head with copper reflective mirror for uniform heat treatment

    • Full water-cooled design for body and powder nozzle, providing excellent cooling efficiency

    • Compact size and lightweight, easy to integrate into equipment

    • Horizontal fiber insertion for convenient internal and external cylindrical cladding operations

    • Equipped with intelligent monitoring system, enabling alarms and automatic shutdown to protect optical components

    • Lateral air knife cleaning to prevent lens contamination and burnout

    • Optional vision tracking unit for real-time monitoring of in-tube cladding process

    • Saddle dual optical path design for more stable hardening and deeper hardness layers

    • Fiber Interface: QBH / QD / LOE / Q+

    • Collimating Distance: F = 100 mm

    • Focusing Focal Length: F = 400 mm

    • Laser Power: ≤ 12 kW

    • Upper Protective Lens: D30-2.0 mm

    • Lower Protective Lens: 40-3.5 mm

    • Focal Spot Size: 40-3 mm (core diameter 600 µm)

    • Clear Aperture: 33 mm

    • Laser Head Weight: ~5.0 kg

    • Minimum Workpiece Inner Diameter: ≥ 160 mm
