Integrated Coaxial Wire & Powder Deposition Head

The Integrated Coaxial Wire & Powder Deposition Head is designed for high-precision laser cladding and additive manufacturing applications requiring maximum process flexibility. Featuring a true coaxial beam delivery structure, it supports both wire and powder feeding in a single compact system, enabling optimized material utilization and stable melt pool control.

This hybrid deposition head is ideal for repair, hardfacing, and near-net-shape manufacturing across aerospace, energy, and heavy industry sectors. Compatible with high-power fiber lasers, it delivers consistent metallurgical bonding, reduced dilution, and enhanced process stability for demanding industrial environments.

Request More Information

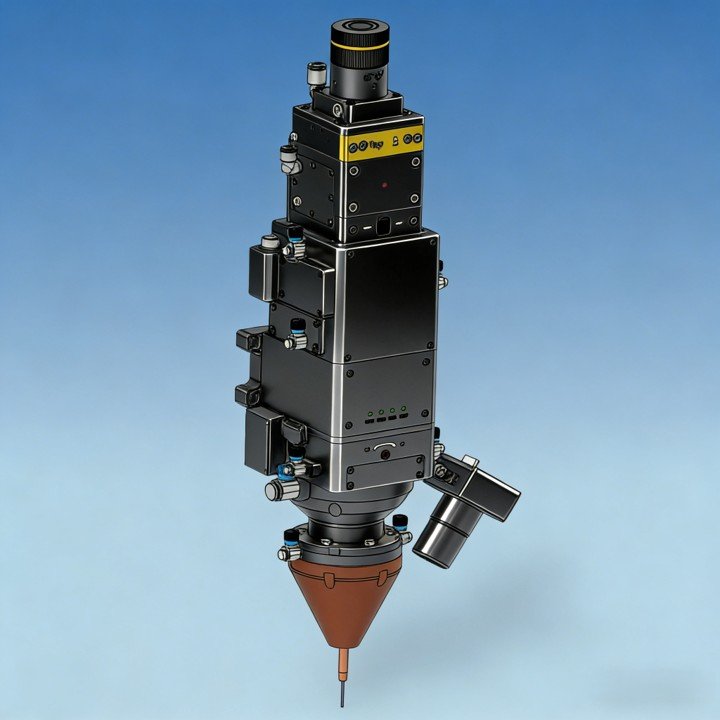

Integrated Coaxial Wire and Powder Laser Cladding Head with full water cooling design

    • Fully water-cooled body and powder nozzle design ensures excellent thermal management and stable performance during high-power laser cladding operations.

    • Supports independent central powder feeding or wire feeding, providing maximum flexibility for hybrid wire and powder deposition applications.

    • Integrated internal nozzle gas shielding protects optical components from contamination and thermal damage, extending lens life and improving process reliability.

    • Optional vision tracking and monitoring system enables real-time observation of internal cladding conditions, enhancing process control and quality assurance.

    • Uniform circular beam energy distribution delivers smooth, even clad layers and simplifies process parameter optimization.

    • High material efficiency with powder utilization up to 95% and wire utilization up to 98%, significantly reducing processing costs.

    • Compact and lightweight construction allows easy integration with robotic laser cladding systems and automated production lines.

    • Optional intelligent monitoring module with automatic alarm and shutdown functions provides enhanced protection for critical optical components.

    • Fiber Interface: QBH

    • Collimation Focal Length: F = 100 mm

    • Focusing Focal Length: F = 250 mm

    • Maximum Laser Power: ≤ 6 kW (single channel)

    • Upper Protective Window: Ø40 × 3.5 mm

    • Lower Protective Window: Ø70 × 8.0 mm(with central hole)

    • Focal Spot Size: 1.5 – 4.5 mm (with 600 μm fiber core)

    • Clear Aperture: 50 mm

    • Laser Head Weight: Approx. 6.5 kg
