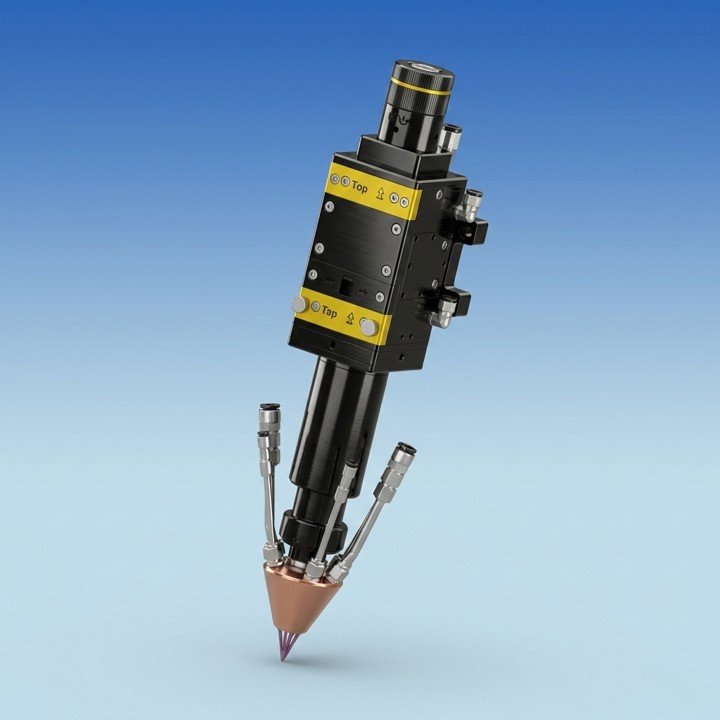

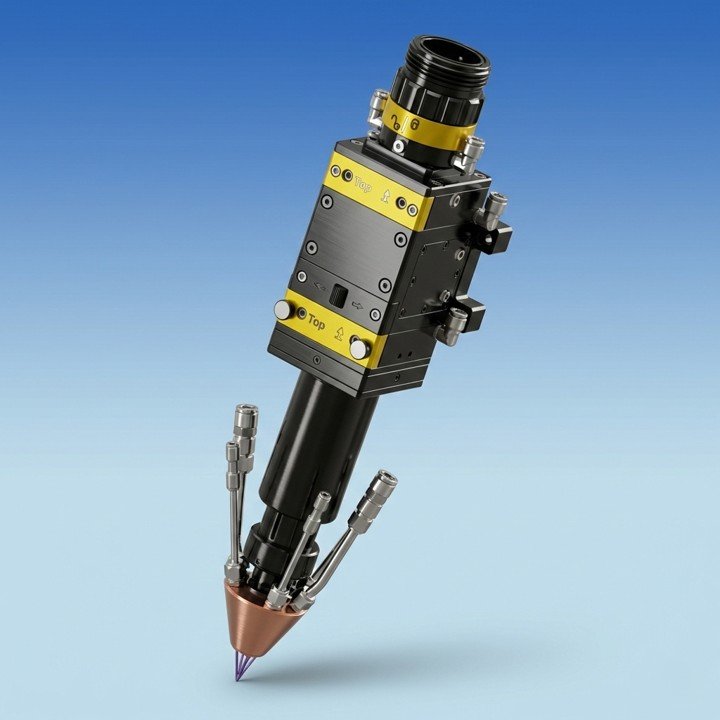

Coaxial Laser Cladding Head
The Coaxial Laser Cladding Head from Nipex Laser is designed for high-precision laser cladding, surface repair, and additive manufacturing applications. Featuring a true coaxial powder-feeding structure, this transmission-type laser cladding head ensures uniform powder distribution and a stable melt pool, resulting in excellent coating quality and minimal material waste.
This laser cladding head is ideal for applications such as mold repair, wear-resistant coatings, and high-value component remanufacturing. With modular configuration options and compatibility with common fiber laser interfaces, it provides a flexible and cost-effective solution for modern laser cladding systems.
Fully water-cooled body and powder-feeding nozzle for efficient thermal management and long-term process stability
Compact and lightweight design, ideal for integration with dedicated machines and robotic laser cladding systems
Internal nozzle gas shielding to protect optical components and prevent lens contamination or damage
Adjustable circular spot size to support flexible laser cladding process optimization
Dual lower protective lens drawer design for quick replacement and simplified maintenance
Upper protective window with enhanced sealing for improved optical protection
Unified specification for upper and lower protective lenses, reducing spare parts inventory and maintenance costs
Four-channel coaxial powder feeding design, achieving powder utilization efficiency of up to 92%
- Fiber Interface: QBH / LOE
- Collimation Distance: 100 mm
- Focusing Lens Focal Length: 250 mm
- Max Laser Power: ≤ 6 kW
- Protective Lens (Lower): Ø40 × 3.5 mm
- Focal Spot Size: 1 – 3.5 mm (for 600 μm fiber core)
- Clear Aperture: 34 mm
- Laser Head Weight: ~2.5 kg
- Minimum Workpiece Hole Diameter: ≥ 50 mm
