Internal Laser Cutting Head for Fiber Laser Tube Cutting

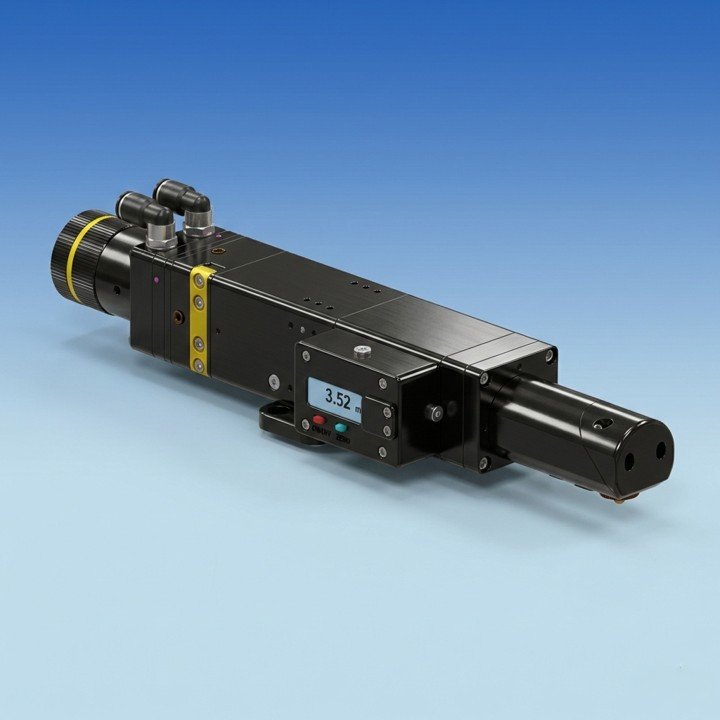

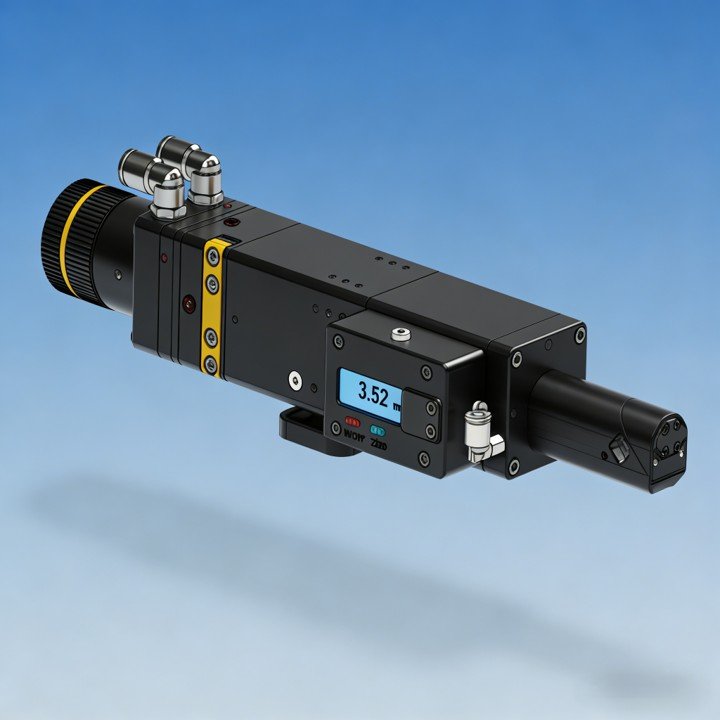

Nipex Laser’s internal laser cutting head is designed for fiber laser tube cutting applications that require clean internal surfaces and high cutting stability. The internal cutting structure directs the laser beam outward from inside the tube, significantly reducing sparks, slag adhesion, and inner wall contamination. This solution is widely used for new energy vehicle battery housing tube cutting and other precision tubular components.
The cutting head features digital focus adjustment for accurate focal positioning across different tube diameters, wall thicknesses, and materials. Its lightweight, modular design enables easy integration into automated and robotic tube cutting systems while simplifying maintenance and optical replacement.
Supporting a minimum internal tube diameter of 33 mm, this internal tube laser cutting head is compatible with fiber laser sources and delivers reliable, repeatable performance in industrial tube processing.
Available with or without capacitive height sensing to meet different system and application requirements
Digital focus display for accurate, intuitive, and convenient focus adjustment during the cutting process
±8 mm lens travel for precise focal position setting across various tube diameters and materials
Supports internal cutting of tubes with a minimum inner diameter of 33 mm, ideal for small-diameter and high-precision tube applications
Quick, toolless access to the sealed protective cover glass, simplifying maintenance and replacement
Flexible optical design supporting a wide range of spot sizes for different cutting applications
Compact and lightweight construction, optimized for robotic and automated cutting systems
Nozzle cooling design for stable cutting of high-reflection materials such as aluminum and copper alloys
Dual lower protective lens configuration for enhanced sealing, dust resistance, and extended optical lifetime
- Power Rating: up to 4 kW
- Nominal Focusing Lens (Singlet, Fused Silica, λ 1025-1080 nm): 50mm,75mm,100 mm, 125 mm, 200 mm
- Clear Aperture: 25 mm
- Nozzle Orifices: 1 mm to 4 mm
- Nozzle Styles: Single Orifice, Double, Multi-Hole Shower, Custom
- Assist Gas Pressure: up to 20 BAR
- Focal Point To Nozzle Adjustment: -4 mm to +9 mm
- Weight: ~1.5 kg (Base configuration. Weight will vary based on options added)
- Nominal Collimating Lens (Doublet, Fused Silica, λ 1025-1080 nm): 75 mm, 100 mm
- Clear Aperture: 26 mm
- Fiber Connections: QD (LLK-D, LCA), QBH (HLC-8), Q5 (LLK-B) [Others available on request]
