Additive Manufacturing (DED) Solutions
High-efficiency Directed Energy Deposition systems for precision metal deposition and repair
Process Overview

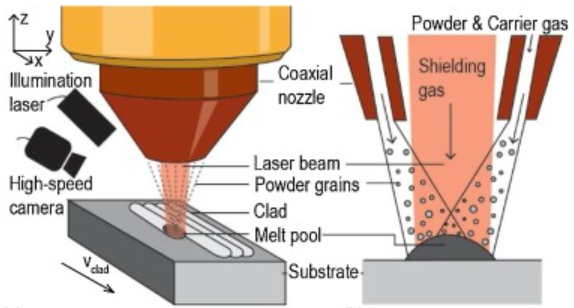

Directed Energy Deposition (DED) is an advanced additive manufacturing process that uses a focused high-power laser beam to create a controlled melt pool while metal powder or wire is simultaneously fed into the interaction zone.
The process enables precise material deposition, near-net-shape manufacturing, and high-value component repair with excellent metallurgical bonding and minimal dilution.
Nipex DED systems are designed to deliver stable energy control, consistent material flow, and reliable integration into robotic and CNC-based platforms.
Key Advantages of DED Technology
High deposition rate
Strong metallurgical bonding
Multi-layer and multi-material capability
Near-net-shape manufacturing
Efficient material utilization
Suitable for repair and remanufacturing
Reduced lead time for complex parts
DED bridges the gap between traditional manufacturing and full additive production, offering flexibility for industrial-scale metal processing.
Core Technologies
Nipex modular DED heads are engineered for industrial reliability and precision:
Coaxial powder or wire delivery system
High-power fiber laser interfaces (QBH / QD / Q+)
Fully water-cooled optical structure
Precision collimation and focusing optics
Stable melt pool formation control

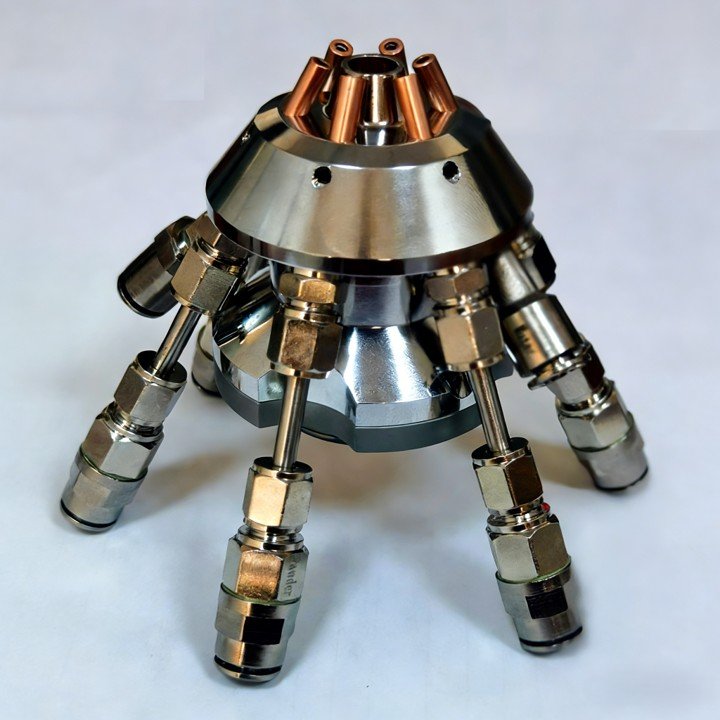

Multi-nozzle powder feeding options

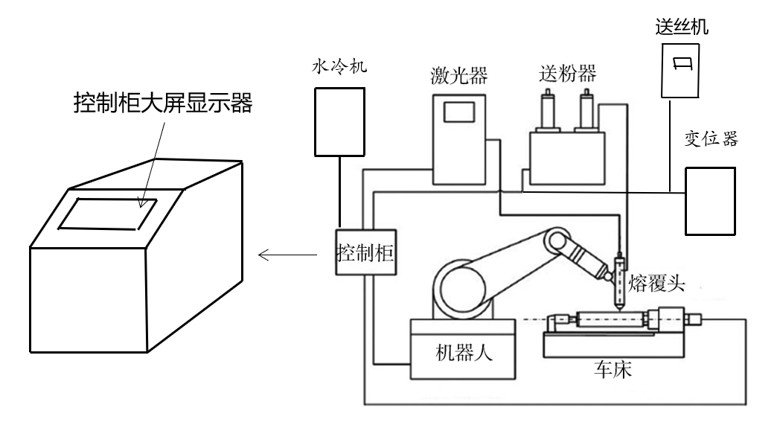

Compatibility with robotic and multi-axis systems
The coaxial deposition design ensures uniform material distribution, consistent layer buildup, and high powder utilization efficiency.
Process Control & Performance
Controlled melt pool dynamics
Adjustable deposition width and layer thickness
Stable multi-layer stacking
Minimal porosity and dilution
Suitable for high-strength alloys and ductile iron
Repeatable industrial operation
Nipex DED systems support both repair applications and additive manufacturing of new components.
Typical Applications
Directed Energy Deposition is widely applied in:
Mold and die repair
Turbine blade restoration
Heavy equipment component rebuilding
Aerospace structural components
Tooling reinforcement
Hydraulic and mining equipment repair
Complex geometry metal part fabrication
The process enables localized material addition, extending component life while reducing replacement costs.
Powder & Wire Deposition Options
Nipex DED systems support:
Coaxial powder deposition
Multi-nozzle powder feeding
Wire-fed laser deposition

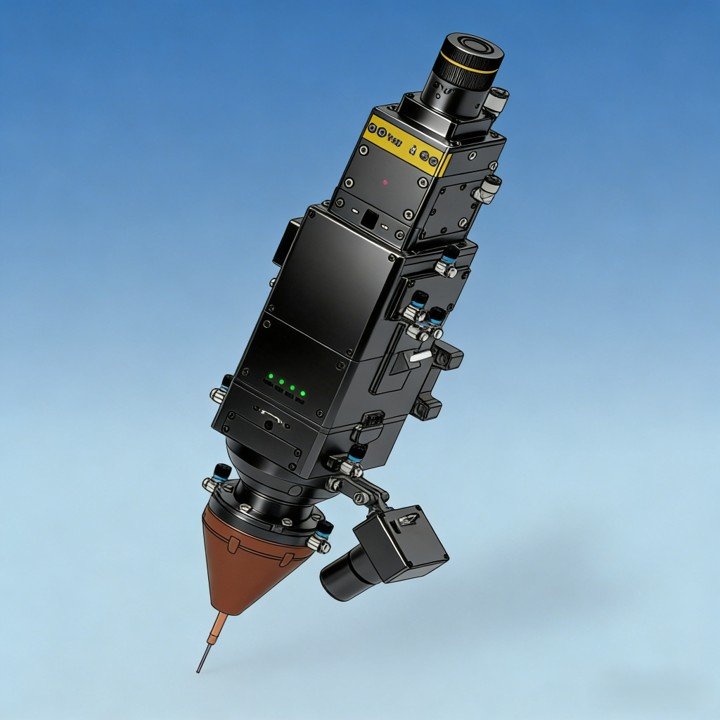

Hybrid welding + additive configurations
This flexibility allows adaptation to different materials and industrial process requirements.
Designed for System Integrators
Nipex provides modular DED heads and core laser components tailored for machine builders and automation integrators. Our solutions reduce system complexity while ensuring stable, repeatable, high-power additive manufacturing performance.
Explore DED Products
Coaxial Powder Deposition Heads
Wire + Powder Hybrid Heads
Multi-Nozzle Deposition Systems
Powder Feeders
Fiber Interfaces
Optical Components
