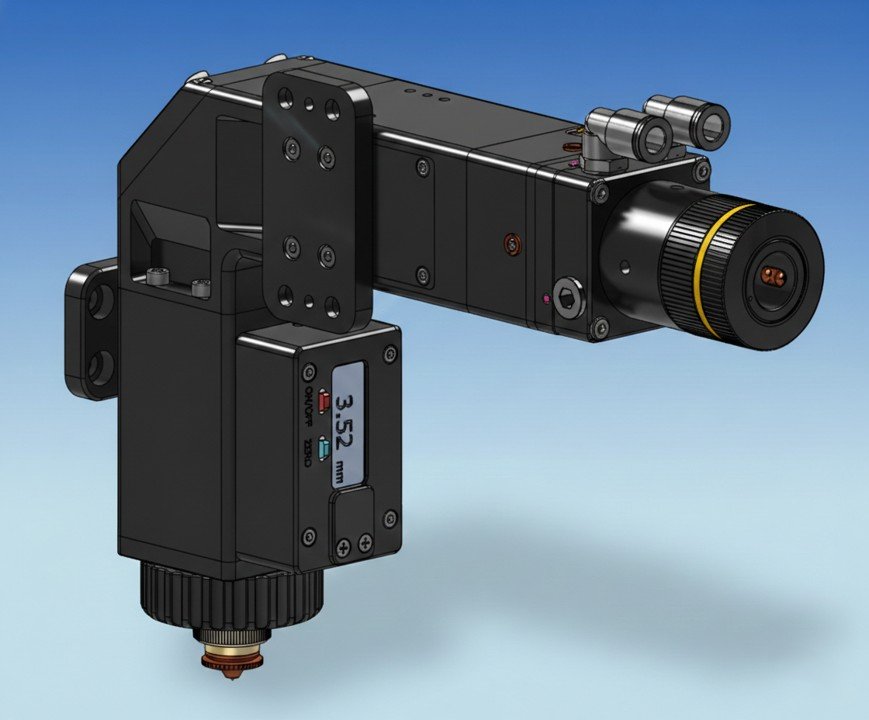

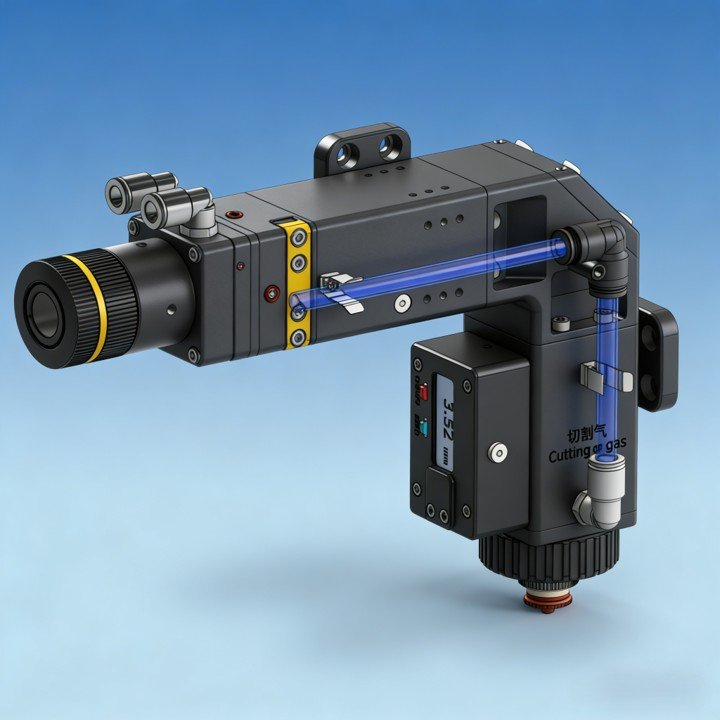

The 90° Laser Cutting Head from Nipexlaser is a cornerstone of our product line, engineered to deliver precision and versatility for cutting flat sheets, tubes, and a wide range of industrial materials.
Built on a design that allows the user to configure a compact, lightweight processing head to their specific Fiber Laser application, this cutting head combines robust performance with exceptional value—making it our go-to solution for businesses seeking reliable, cost-effective laser processing equipment. Whether you’re optimizing production for sheet metal fabrication or tube cutting operations, the 90° Laser Cutting Head delivers the durability and adaptability you need to stay ahead.
- Available with or without capacitive height sensing
- Digital display for focus adjustment, enabling accurate, intuitive, and convenient cutting process tuning
- ±8 mm of lens movement to set focus
- Quick, toolless access to the sealed cover glass
- Flexible design to optimize a wide range of spot sizes
- Compact, lightweight design
- Nozzle cooling for high-reflection materials
- Dual lower protective lens design for enhanced sealing and dust resistance
- Power Rating: up to 4 kW
- Nominal Focusing Lens (Singlet, Fused Silica, λ 1025-1080 nm): 50mm,75mm,100 mm, 125 mm, 200 mm
- Clear Aperture: 25 mm
- Nozzle Orifices: 1 mm to 4 mm
- Nozzle Styles: Single Orifice, Double, Multi-Hole Shower, Custom
- Assist Gas Pressure: up to 20 BAR
- Focal Point To Nozzle Adjustment: -4 mm to +9 mm
- Weight: ~1.5 kg (Base configuration. Weight will vary based on options added)
- Nominal Collimating Lens (Doublet, Fused Silica, λ 1025-1080 nm): 75 mm, 100 mm
- Clear Aperture: 26 mm
- Fiber Connections: QD (LLK-D, LCA), QBH (HLC-8), Q5 (LLK-B) [Others available on request]
